70MHz–6.2GHz Full-Band UAV Detection System | Multi-Terminal Alarm Push with DJI Coverage & Autel Positioning for Anti-Drone Systems
| 起源の場所 | 深セン |
|---|---|
| ブランド名 | Ladasky |
| モデル番号 | LDSK-TZ-600A |
| 最小注文数量 | 1 |
| 受渡し時間 | 5～8日 |
| 支払条件 | L/C、D/A、T/T、D/P、ウェスタンユニオン、 |
| 供給の能力 | 5000個/月 |
無料サンプルとクーポンについては、ご連絡ください。
ワットスアップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| フルバンド検出 | 70 MHz ～ 6.2 GHz の広帯域スキャン | FPVビデオキャプチャ | すべてのアナログビデオ伝送をキャプチャし、FPV 侵入とリアルタイムダイナミクスの一人称視点分析を可能にします |
|---|---|---|---|
| 強化された検出機能 | 検出および復号化範囲は最大 12 km | マルチシナリオの展開 | バックパック搭載、固定現場、車両搭載での運用をサポート |
| ハイライト | 70MHz-6.2GHz UAV detection system,multi-terminal alarm drone detector,DJI Autel anti-drone system |
||
製品の説明
70MHz–6.2GHz Full-Band UAV Detection System
Multi-Terminal Alarm Push with DJI Coverage & Autel Positioning for Anti-Drone Systems
The LDSK-TZ-600A All-Scenario Drone Detection and Positioning System is a comprehensive, multi-functional solution designed for high-performance, long-range counter-drone operations. It integrates full-spectrum detection, precise drone and pilot positioning, and FPV video capture into a single, portable backpack or vehicle-mount system.
Key Features
- Identify, locate & track UAV threats up to 12km range
- Full-spectrum detection from 70MHz to 6.2GHz
- Precise drone and pilot positioning with ≤10m accuracy
- FPV video capture capability up to 1.5km
- Multi-terminal alarm sharing for coordinated team response
- Flexible deployment: backpack, fixed-site, or vehicle-mounted
- Rapid response time: ≤3 seconds for 8 bands
- Extended battery life: ≥6 hours operation
Product Specifications
| Model | LDSK-TZ-600A |
|---|---|
| Core Function | All-Scenario Detection, Positioning & FPV Video Capture |
| Detection Frequency Range | 70 MHz - 6.2 GHz (Customizable Scan) |
| Default Detection Bands | 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Max Detection Range | ≥ 10 km (Mainstream UAVs) / ≥ 2 km (FPV Drones) |
| Positioning Capability | Drone & Pilot (Controller) Location |
| Positioning Range | DID: ≥ 10 km / RID: ≥ 3 km |
| Positioning Accuracy | ≤ 10 m |
| FPV Video Detection | 500 MHz - 6 GHz Analog Video Transmission |
| Video Capture Distance | ≥ 1.5 km (LoS, Clear Environment) |
| Response Time | ≤ 3 s (8 Bands) / ≤ 5 s (12 Bands) |
| Alarm Modes | Sound, Vibration, Light |
| Power Supply | Built-in Lithium Battery |
| Battery Life | ≥ 6 Hours (Main Unit) |
| Deployment Modes | Backpack, Fixed-Site, Vehicle-Mounted |
| Networking & Control | Multi-Terminal Alarm Push, RJ45 & Type-C Interfaces |
| Weight (Main Unit) | ≤ 8 kg |
| Dimensions (Main Unit) | 400 mm (L) × 165 mm (W) × 500 mm (H) |
| Package | Aviation Case Included (550mm×400mm×240mm) |

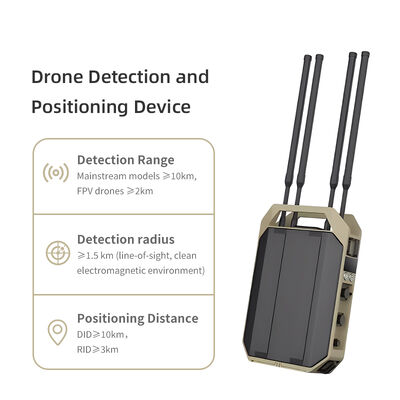

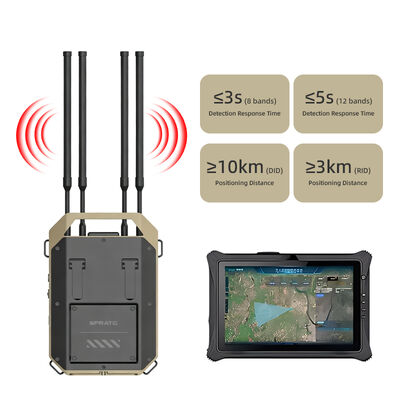

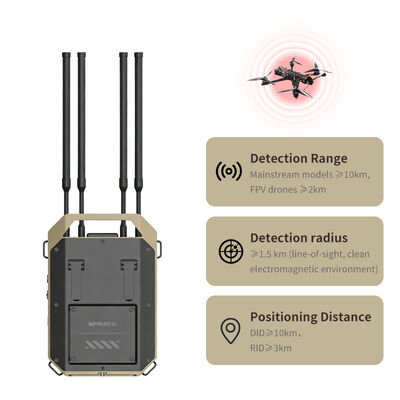

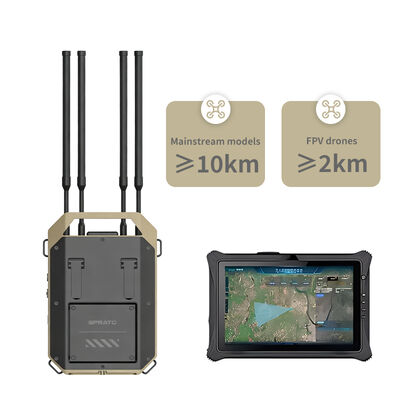

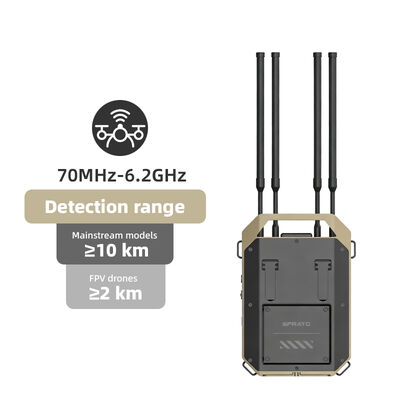

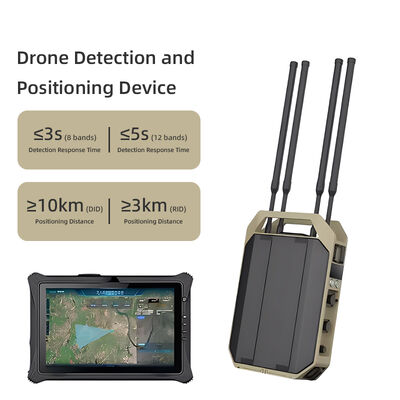

Product Images
