LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz

Name: LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz
Brand: Shenzhen Ladasky Technology Co.，Ltd
SKU: LDK-C04
Price: 18,750.00 USD
Availability: InStock

ブランド名:	LDSK
モデル番号:	LDK-C04
MOQ:	1
納期:	7週間
支払い条件:	D/A、D/P、T/T、ウェスタンユニオン、ペイパル

詳細情報

製品説明

詳細情報

起源の場所:

広東省、中国

検出周波数帯域:

70MHz～6.2GHz（カスタマイズ可能）

検出半径:

DID ≥10km。 RID ≥3km

持久力の時間:

6時間以上

ハイライト:

対ドローン探知装置、ウェアラブル対ドローン探知装置

パッケージの詳細:

カートン

供給の能力:

5000PCS/月

製品説明

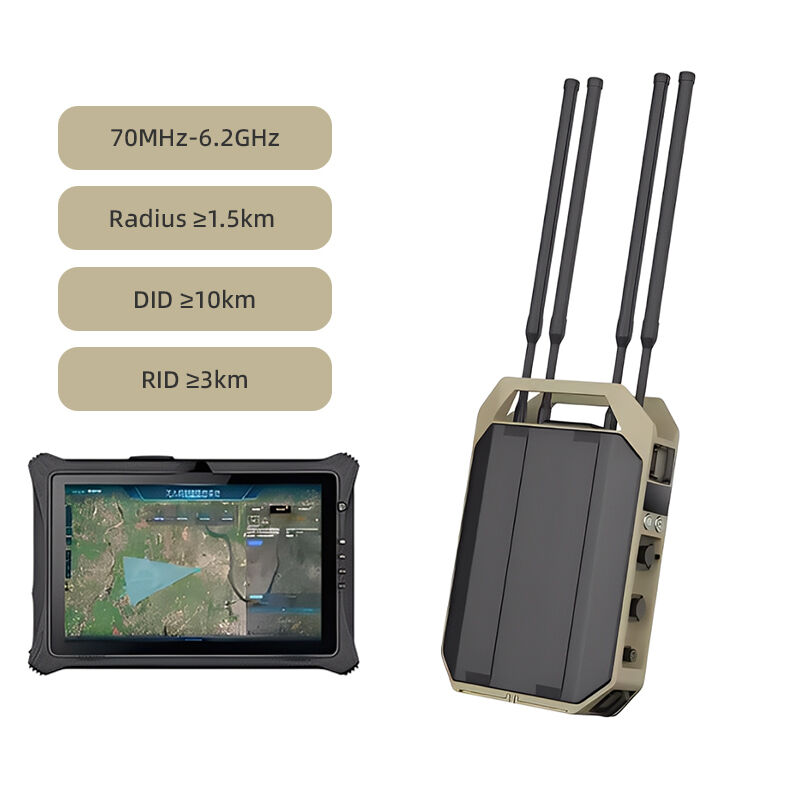

LDK-C04 All‑Scenario UAV Detection & Positioning Equipment

Professional Wideband Signal Detection & Positioning Solution for Complex Scenarios

TTSK‑C04 is a portable all‑scenario UAV signal detection and positioning device. It adopts wideband signal receiving technology to identify different UAV types quickly, and provides real‑time positioning of UAV and its controller. It supports FPV analog video signal capture and storage, multi‑terminal alarm synchronization, and can be deployed in backpack, fixed and vehicle‑mounted modes. With stable performance and long detection distance, it is widely used in key area protection, daily patrol, team operation and evidence collection.

Key Features

70MHz–6.2GHz wideband signal detection with customizable bands
Real‑time UAV and controller positioning with latitude, longitude and azimuth
FPV analog video signal capture and real‑time display
Max detection distance up to 12km for mainstream UAV systems
Sound, light and vibration three‑mode alarm
Multi‑terminal information push for team collaboration
Supports backpack, fixed and vehicle‑mounted deployment
Long battery life up to 6 hours for continuous operation
Fast response within 3–5 seconds
High compatibility with mainstream UAV models

Technical Specifications

Model: TTSK‑C04
Detection frequency: 70MHz–6.2GHz (customizable)
Detection range: Mainstream UAV ≥10km; FPV ≥2km
Positioning range: DID ≥10km; RID ≥3km
Positioning accuracy: ≤10m
FPV video capture: 500MHz–6GHz
Alarm mode: Sound, light, vibration
Battery life: ≥6 hours
Weight: ≤8kg
Dimensions: 400×165×500mm
Deployment: Backpack / Fixed / Vehicle‑mounted

Picture image

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 0

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 1

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 2

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 3

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 4

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 5

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 6

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz 7

Frequently Asked Questions

1.What frequency range does this device support?
It supports signal detection from 70MHz to 6.2GHz with customizable bands.
2.How far is the detection distance?
Up to 10km for mainstream UAVs and 2km for FPV systems.
3.Does it support video capture?
Yes, it supports FPV analog video signal capture and real‑time display.
4.Can it locate the controller?
Yes, it provides real‑time positioning of both UAV and controller.
5.What deployment methods are supported?
It supports backpack, fixed installation and vehicle‑mounted use.
