Full-Band 70MHz–6.2GHz Drone Detected, DID≥10km，RID≥3km Positioning Range | FPV Video Capture, ≤3s Detection Response, ≥6h Battery Life for Alaram System
| 起源の場所 | 深セン |
|---|---|
| ブランド名 | Ladasky |
| モデル番号 | LDSK-TZ-600A |
| 最小注文数量 | 1 |
| 受渡し時間 | 5～8日 |
| 支払条件 | L/C、D/A、T/T、D/P、ウェスタンユニオン、 |
| 供給の能力 | 5000個/月 |
無料サンプルとクーポンについては、ご連絡ください。
ワットスアップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| フルバンド検出 | 70 MHz ～ 6.2 GHz の広帯域スキャン | FPVビデオキャプチャ | すべてのアナログビデオ伝送をキャプチャし、FPV 侵入とリアルタイムダイナミクスの一人称視点分析を可能にします |
|---|---|---|---|
| 強化された検出機能 | 検出および復号化範囲は最大 12 km | マルチシナリオの展開 | バックパック搭載、固定現場、車両搭載での運用をサポート |
| ハイライト | Full-band drone detector with 10km range,Portable drone alarm system with 6h battery,FPV video capture drone detection system |
||
製品の説明

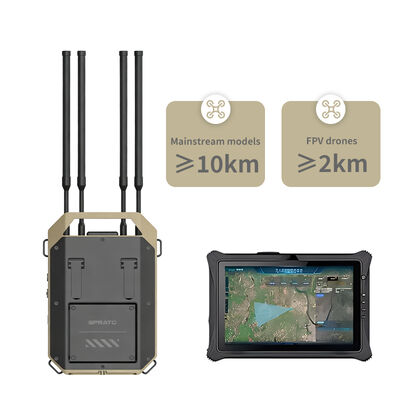

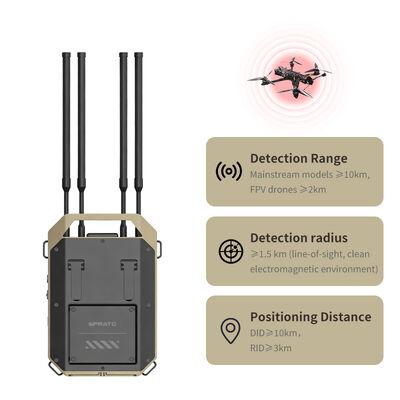

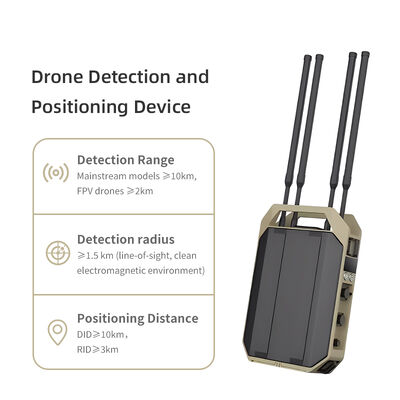

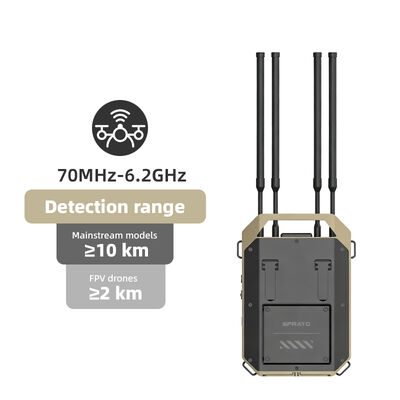

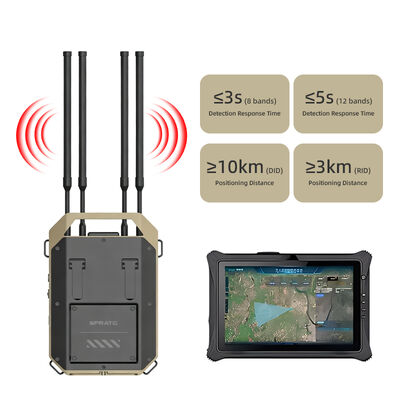

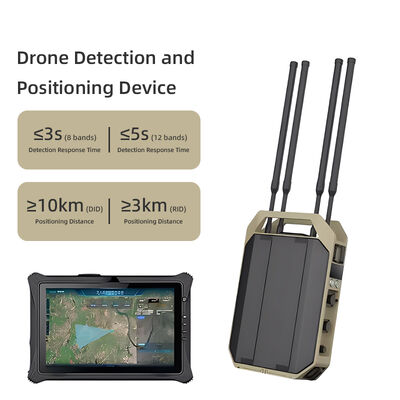

LDSK-TZ-600A Full-Band Portable Drone Detector
The LDSK-TZ-600A All-Scenario Drone Detection and Positioning System is a comprehensive, multi-functional solution designed for high-performance, long-range counter-drone operations. This advanced system integrates full-spectrum detection, precise drone and pilot positioning, and FPV video capture into a single, portable backpack or vehicle-mount configuration.
Key Operational Advantages
- Full-band detection coverage from 70MHz to 6.2GHz
- Long-range detection up to 12km for mainstream UAVs
- Precise drone and pilot positioning with ≤10m accuracy
- FPV video capture capability up to 1.5km
- Multi-terminal alarm sharing for coordinated team response
- Flexible deployment across fixed, mobile, and man-portable scenarios
- Rapid detection response time of ≤3 seconds
- Extended battery life of ≥6 hours
Technical Specifications
| Model | LDSK-TZ-600A |
| Core Function | All-Scenario Detection, Positioning & FPV Video Capture |
| Detection Frequency Range | 70 MHz - 6.2 GHz (Customizable Scan) |
| Default Detection Bands | 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Max Detection Range | ≥ 10 km (Mainstream UAVs) / ≥ 2 km (FPV Drones) |
| Positioning Capability | Drone & Pilot (Controller) Location |
| Positioning Range | DID: ≥ 10 km / RID: ≥ 3 km |
| Positioning Accuracy | ≤ 10 m |
| FPV Video Detection | 500 MHz - 6 GHz Analog Video Transmission |
| Video Capture Distance | ≥ 1.5 km (LoS, Clear Environment) |
| Response Time | ≤ 3 s (8 Bands) / ≤ 5 s (12 Bands) |
| Alarm Modes | Sound, Vibration, Light |
| Power Supply | Built-in Lithium Battery |
| Battery Life | ≥ 6 Hours (Main Unit) |
| Deployment Modes | Backpack, Fixed-Site, Vehicle-Mounted |
| Networking & Control | Multi-Terminal Alarm Push, RJ45 & Type-C Interfaces |
| Weight (Main Unit) | ≤ 8 kg |
| Dimensions (Main Unit) | 400 mm (L) × 165 mm (W) × 500 mm (H) |
| Package | Aviation Case Included (550mm×400mm×240mm) |
Product Images
Frequently Asked Questions
How can I get the price?
We usually quote within 24 hours after we get your inquiry (except weekends and holidays). If you need an urgent quote, please email us or contact us through other available channels.
How about the delivery date?
Typically, delivery takes 5-7 working days for normal order quantities. For larger orders, please contact us for specific delivery timelines.
What is your payment term?
We accept T/T, Western Union, MoneyGram, and PayPal. Payment terms are negotiable based on order requirements.
What is the shipping method?
Shipping options include sea freight, air freight, or express delivery (EMS, UPS, DHL, TNT, FedEx and others). Please confirm shipping method with us before placing orders.
How do you maintain long-term business relationships?
- We maintain high quality standards and competitive pricing to ensure customer satisfaction
- We treat every customer as a partner and sincerely conduct business while building lasting relationships
