Counter UAV Drone Professional GNSS Spoofer | Anti-Drone GNSS Spoofing & Navigation Satellite Deception Equipment for Defense Systems
| 起源の場所 | 深セン |
|---|---|
| ブランド名 | Ladasky |
| モデル番号 | LDSK-AY06/LDSK-AY13/LDSK-AY22 |
| 最小注文数量 | 1 |
| 価格 | $7858-$25000 |
| 受渡し時間 | 5～8日 |
| 支払条件 | L/C、D/A、T/T、D/P、ウェスタンユニオン、マネーグラム |
| 供給の能力 | 5000個/月 |
無料サンプルとクーポンについては、ご連絡ください。
ワットスアップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 範囲 | 5km〜20kmカスタマイズ可能 | スプーフィング手法 | 機首誘導、抑止、不時着、急速衝突。 |
|---|---|---|---|
| 航法信号 | GPS、BDS、GLONASS、Galileo、QZSS、IRNSS（カスタマイズ可能） | 寸法 | 430*370*175mm (アンテナなし) |
| 外部の電源電圧 | AC110-300V | ||
| ハイライト | Counter UAV drone GNSS spoofer,Anti-drone satellite deception equipment,Portable drone detector defense system |
||
製品の説明

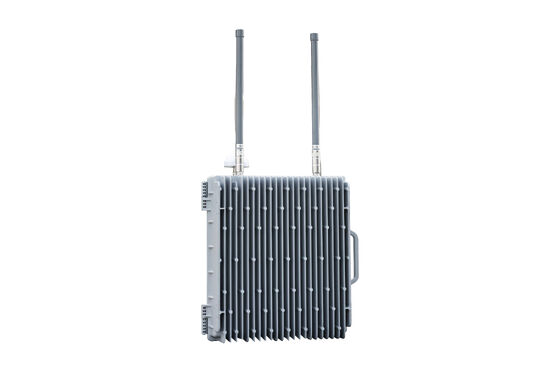

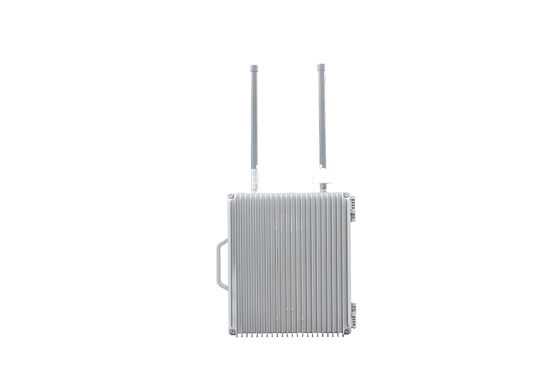

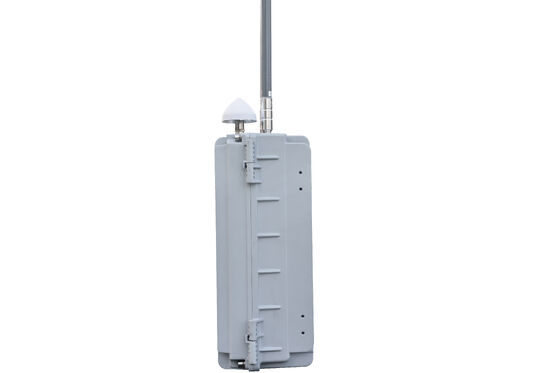

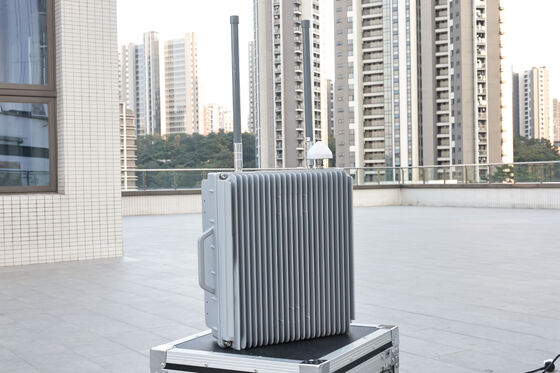

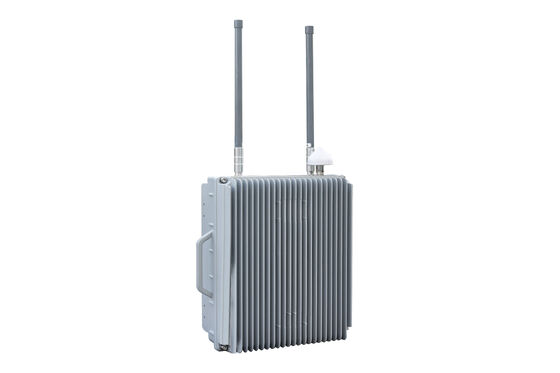

Counter UAV Drone Professional GNSS Spoofer
Advanced anti-drone GNSS spoofing and navigation satellite deception equipment designed for defense systems and security applications.
Navigation Satellite Deception Equipment
This specialized equipment is engineered for counter-drone operations across critical sectors including oil and petrochemical facilities, power infrastructure, public security, and military applications. Featuring a compact, lightweight design with exceptional reliability and user-friendly operation, it enables rapid deployment and integration. Utilizing advanced navigation satellite signal simulation technology, the system broadcasts simulated satellite signals that are indistinguishable from actual on-orbit navigation satellites. When drones receive these simulated signals, they process them for positioning, allowing implementation of multiple deception strategies including heading guidance, deterrence, forced landing, and rapid crash scenarios.
Product Features
- Comprehensive support for signal reception and simulated transmission across all major global navigation satellite systems, including specialized frequencies for Japan and India
- Advanced navigation deception capabilities for UAVs dependent on satellite navigation, enabling forced landing, heading guidance, takeoff prevention, and signal interference
- Integration with external direction finding modules for target azimuth identification and precise horizontal movement control
- External command control for arbitrary navigation signal combination transmission
- Flexible coordinate configuration supporting both external command input and built-in fixed coordinates
- Customizable simulation parameters including signal delay, motion speed, and acceleration via external commands
- Preset trajectory support for linear and circular motion patterns
- External motion trajectory input with real-time navigation signal calculation and output
- Dual ephemeris mode operation: real-time and permanent
- Satellite navigation signal suppression and interference output capabilities
- Network-based secondary development control interface for system customization
Technical Specifications
Performance Parameters
| Item | Specification |
|---|---|
| Deception Distance | Customizable according to customer requirements |
| Supported GNSS Systems | GPS, BDS, GLONASS, Galileo |
| Receiving Frequencies | BDS-B1, GPS-L1 / L2 / L5, GLONASS-L1, Galileo-E1 |
| Attenuation Adjustment Range | 80 dB |
| Attenuation Resolution | 1 dB |
| Power-on Startup Time | 60 s |
| GNSS Signal Synchronization Time | < 180 s |
GNSS Signal Simulation Capability
| No. | Satellite System | Frequency Band | Channels |
|---|---|---|---|
| 1 | BDS | B1I | 16 |
| 2 | GPS | L1 C/A | 16 |
| 3 | GPS | L2 | 16 |
| 4 | GPS | L5 | 16 |
| 5 | GLONASS | L1 | 16 |
| 6 | Galileo | E1 | 16 |
Distance vs Output Power Reference
| Deception Distance | Output Power |
|---|---|
| 5 km | 5 W |
| 10 km | 20 W |
| 20 km | 50 W |
Ordering Process
- Submit products of interest to our team
- Receive comprehensive product information and detailed quotations
- Consult with our technical specialists for product-related questions
- Confirm order details and receive payment information
- We provide package confirmation and tracking number
- Provide feedback after receiving your goods
