Handheld Drone Detector with High Sensitivity and Long Battery Life for UAV Detection LDKW07 Lightweight drone detection anti drone system

起源の場所	中国広州
ブランド名	LDSK
モデル番号	LDSKWK07
最小注文数量	1
価格	$400
パッケージの詳細	カートン
受渡し時間	1週間
支払条件	D/A、D/P、T/T、Western Union、MoneyGram、PayPal
供給の能力	月額50000pc

無料サンプルとクーポンについては、ご連絡ください。

ワットスアップ:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

商品の詳細

検出周波数帯域	300MHz～6200MHz	検出半径	≥ 1 km (通常の条件)
応答時間	3〜5秒	持久力の時間	3〜4H
ハイライト	6000MHzアンチドローン検出デバイス、ウェアラブルアンチドローン検出デバイス	アラームモード	ヘッドフォン、音と光のアラーム
アラームログ容量	500 件以上のアラーム記録	バッテリー寿命	≥ 6 時間（シングルバッテリー）
ハイライト	handheld drone detector with high sensitivity , lightweight drone detection system , UAV detector with long battery life

メッセージ

製品の説明

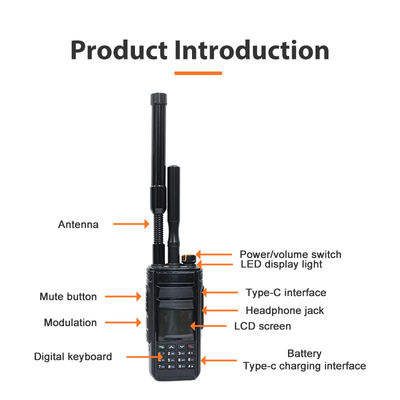

LDKW07 Handheld Drone Detector/Drone detection — 300–6200 MHz FPV & DJI & Autel & racing drone UAV Detection System

Product Overview

The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.

Key Benefits (Why choose LDKW07)

Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.
Long detection distance: reliably detects drones at ≥1 km under typical conditions.
High sensitivity: detection sensitivity better than -96 dBm for weak signals.
Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.
Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.
Low false alarms: multi-channel scanning + dual antenna design reduces false positives.
Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.
Multi-language UI: English, Chinese, Russian.

Main Functions & Features

Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.
Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).

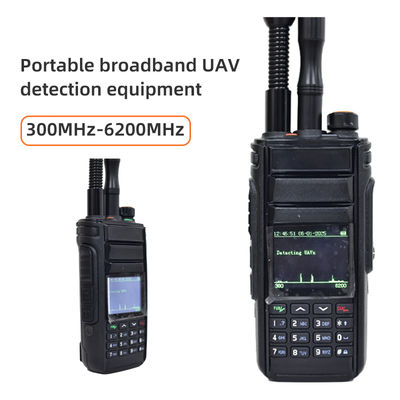

Real-time spectrum display: Visualize signal strength across 300–6200 MHz.
Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.
Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.
Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.

Technical Specifications

Item	Description
Model	LDKW07
Receiving Frequency Range	300 MHz – 6200 MHz
Detectable Signal Types	OFDM HD image transmission and FM analog image transmission (FPV)
Detection Distance	≥ 1 km (typical conditions)
Detection Sensitivity	Better than -96 dBm
Alarm Modes	Headphones, sound and light alarm
Alarm Log Capacity	≥ 500 alarm records
Upgrade / Data Export Interface	MicroUSB
Power Supply	Removable lithium battery (Type-C charging)
Battery Life	≥ 6 hours (single battery)
Display Interface	Built-in screen, supports English/Chinese/Russian
Operation Modes	Default scan / Key frequency scan / Custom frequency scan

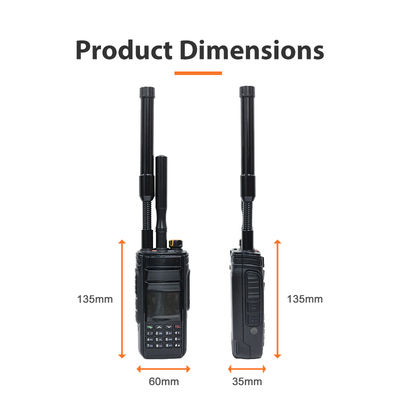

Dimensions (Host)	135 × 60 × 35 mm (excluding antenna)
Weight	≈ 500 g (including one battery)
Working Temperature	-10°C to +55°C
Storage Temperature	-20°C to +60°C
Humidity	≤ 90% RH (non-condensing)
