LLSKF09 Vehicle-mounted FPV UAV Jammer
| 起源の場所 | 中国広州 |
|---|---|
| ブランド名 | LDSK |
| モデル番号 | LDSKC01 |
| 最小注文数量 | 1 |
| 価格 | $1820 |
| 受渡し時間 | 7-10就業日 |
| 支払条件 | D/A、D/P、T/T、Western Union、MoneyGram、PayPal |
| 供給の能力 | 1か月あたり5000pcs |
無料サンプルとクーポンについては、ご連絡ください。
ワットスアップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 検出周波数帯域 | 400～550 / 550～700 / 700～840 / 840～1000 / 1000～1300 / 2400～2500 / 5100～5300 / 5700～5900 MHz (サポート/カスタ | 出力電力 | 400W |
|---|---|---|---|
| アンテナゲイン | 3～8dBi | アンテナの作動角 | 全方向性 360° (垂直);水平65° |
| ジャミング距離 | 300～2000m (環境とターゲットによって異なります) | 検出可能なドローン | DJI、AUTEL、FIMI、PowerVision、YUNEECなど |
| ハイライト | IP65 Protection Portable Drone Detector,Real-time Tracking UAV Detection System,Portable Design Drone Tracking System |
||
製品の説明

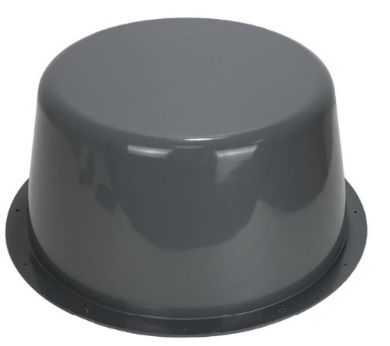

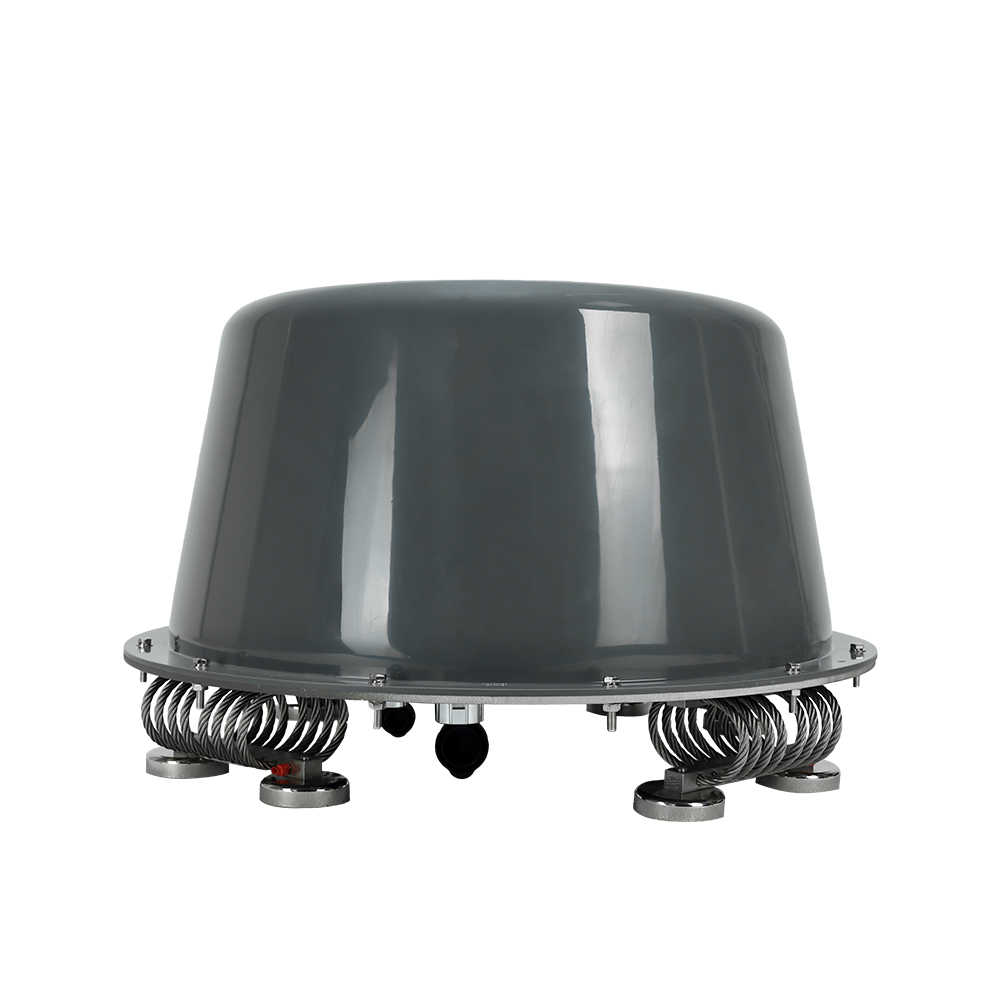

LLSKF09 Vehicle-mounted FPV UAV Jammer
Product Description
TTSKF09 is a high-power vehicle-mounted FPV UAV jammer that disables remote-control and video transmission links, forcing unauthorized drones to return or land. Rugged, roof-installable, and built for mobile protection.
Key Features
-

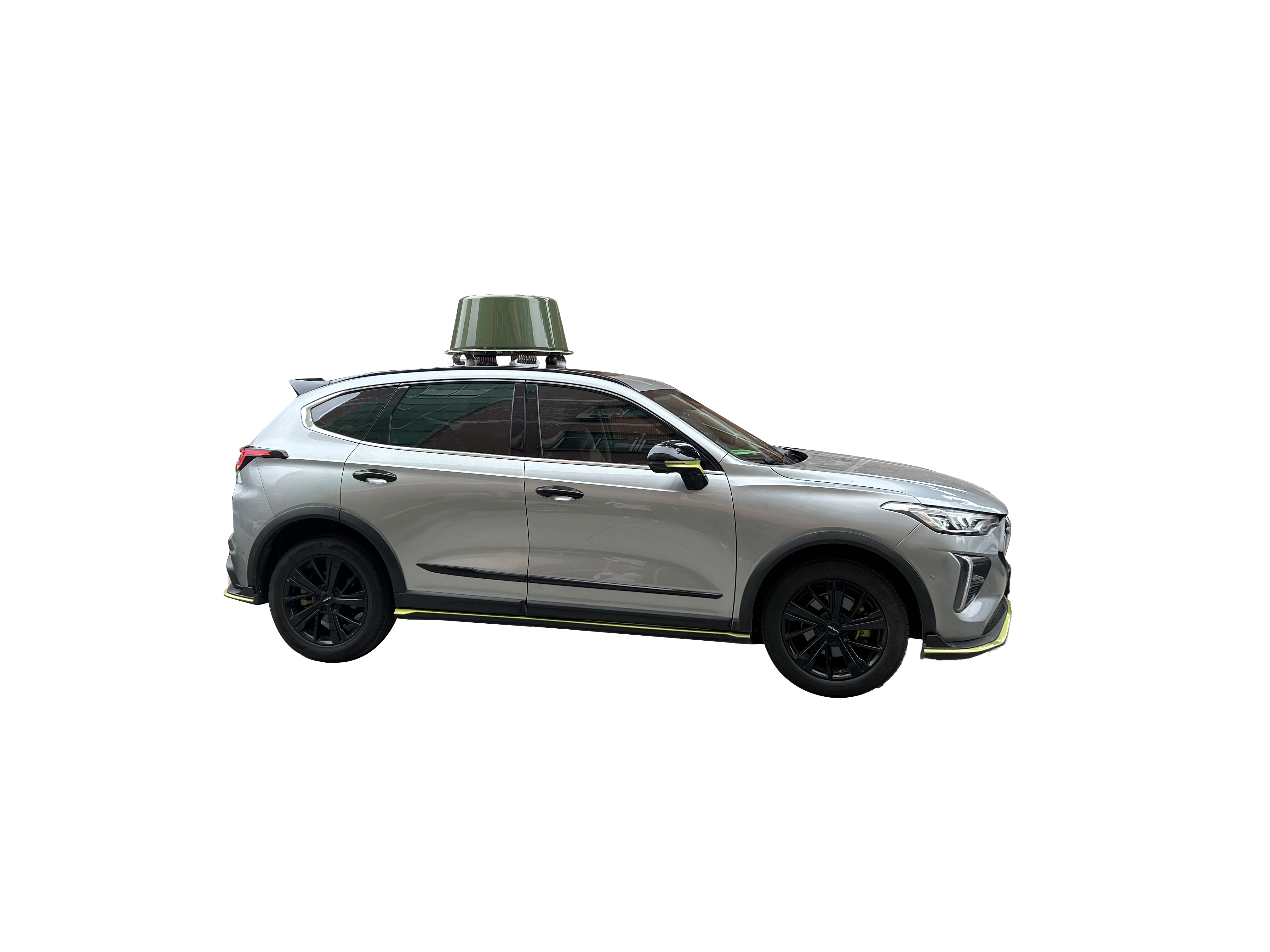

Purpose-built for vehicles — Roof-mount design protects moving cars, trucks, and convoys.
-
Multi-band coverage — Supports 400–1300 MHz, 2.4 GHz, 5.1–5.9 GHz and common FPV bands.
-
High total output power — 400W total output for robust jamming performance.
-
Wide jamming range — 300–2000 m (depends on target RC/FPV power, antenna height and environment).
-
Flexible power — Works from DC 24–29V with optional 40Ah external battery for off-grid use.
-
360° protection — Omnidirectional vertical coverage and wide horizontal coverage for continuous defense.
-
Simple control — Supplied remote control panel for easy operation while on the move.
-
Rugged and portable — Compact dimensions (Φ60cm × 35cm) and 20 kg curb weight.
Product Specifications
| Item | Specification |
|---|---|
| Model | LLSKF09 |
| Working Frequency | 400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 MHz (support/customized) |
| Output Power | 400 W (total) |
| Power Consumption | ≈ 900 W |
| Antenna Gain | 3–8 dBi |
| Antenna Working Angle | Omnidirectional 360° (vertical); 65° horizontal |
| Jamming Distance | 300–2000 m (depends on environment & target) |
| Power Supply | DC 24–29 V (external battery); battery charged by AC 220 V |
| External Battery (Optional) | 40 Ah (approx. 1 hour working time under typical load) |
| Control Method | Remote control panel |
| Dimension | Φ60 cm × 35 cm |
| Weight | 20 kg |
| Operating Temperature | -20 °C to +65 °C |
